概要・特徴

TJR-1は、高抵抗の抵抗材で、耐高温酸化性に優れたフェライト系ステンレス鋼です。FCH-1の代替品種としてご使用いただけます。

主な用途

抵抗器、温度センサ、ヒューズ

対応可能形状

製造可能範囲（コイル、板）

板厚

0.030～1.2mm

幅

3.0～300mm

長さ

コイルもしくは L2000mm以下のシート

当社で製造するコイルやシート材の製造範囲です。

規格

当社独自製品です。
規格は当材料と同等もしくは近似のものを掲載していますので、参考としてご利用ください。

JIS

FCH-1 (C2520)

DIN

CrAl255

0Cr25Al5

その他呼称/相当材料

Resistohm

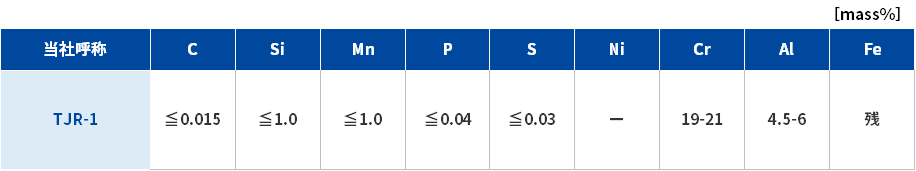

化学成分

物理的性質

密度

7.3 g/cm³

体積抵抗値

1.42 μΩ・m

抵抗温度係数（TCR）

50 ppm/K（23～100℃）

磁性

あり

機械的性質

焼鈍仕上げの硬さは［250HV 以下］ですが、ご希望に応じて硬質材での提供も可能です。

※極薄箔の場合、焼鈍、2B仕上などの軟質材は、不具合（折れ、シワなど）発生の懸念があるため、対応できない場合がございます。
