NCH-2｜電気抵抗用材料

非磁性

耐熱性

高耐食性

製品ラインナップ

本製品資料

試作・見積り依頼

概要・特徴

NCH-2は、高抵抗の抵抗材で、NCH-1よりは劣りますが、抵抗温度係数が小さく、靭性、耐熱性、耐食性に優れた抵抗材です。ろう接性は劣ります。

主な用途

抵抗器、温度センサ、ヒューズ

対応可能形状

ワイヤー（取り寄せ品）のみの対応です。対応可能寸法は都度ご相談ください。

規格

規格は当材料と同等もしくは近似のものを掲載していますので、参考としてご利用ください。

JIS

GNC112R (C2532)

DIN

NiCr6015, 2.4867

Cr15Ni60

その他呼称/相当材料

ISA-CHROM 60

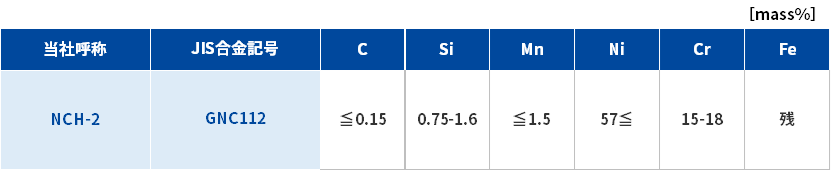

化学成分

物理的性質

密度

8.3 g/cm³

体積抵抗値

1.12 μΩ・m

抵抗温度係数（TCR）

150 ppm/K（23～100℃）

磁性

なし

機械的性質

焼鈍仕上げの硬さは［250HV 以下］ですが、ご希望に応じて硬質材での提供も可能です。

※極薄箔の場合、焼鈍、2B仕上などの軟質材は、不具合（折れ、シワなど）発生の懸念があるため、対応できない場合がございます。
