概要・特徴

Evanohm Rは、高抵抗の抵抗材で、抵抗温度係数がNCH-1よりも優れた抵抗材です。

主な用途

抵抗器、温度センサ、ヒューズ

対応可能形状

製造可能範囲（コイル、板）

板厚

0.040～1.25mm

幅

t0.4mm以上:w3.0～70mm
t0.4mm未満: w3.0～250mm

長さ

コイルもしくは L2000mm以下のシート

当社で製造するコイルやシート材の製造範囲です。

規格

規格は当材料と同等もしくは近似のものを掲載していますので、参考としてご利用ください。

DIN

NiCr20AlSi, 2.4872

その他呼称/相当材料

ISAOHM

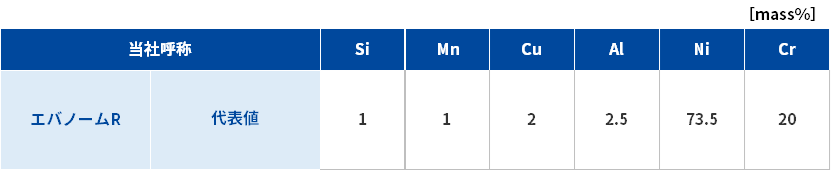

化学成分

物理的性質

密度

8.1 g/cm³

体積抵抗値

1.33 μΩ･m

抵抗温度係数（TCR）

約25 ppm/K（-65～125℃）

磁性

なし

機械的性質

焼鈍仕上げの硬さは［220HV 以下］ですが、ご希望に応じて硬質材での提供も可能です。

※極薄箔の場合、焼鈍、2B仕上などの軟質材は、不具合（折れ、シワなど）発生の懸念があるため、対応できない場合がございます。
