CN5｜電熱用材料｜精密金属材料の特殊金属エクセル(TOKKIN)

抵抗材料・電熱材料

電熱用材料

CN5｜電熱用材料

非磁性

製品ラインナップ

本製品資料

試作・見積り依頼

概要・特徴

CN5は、低抵抗の抵抗材で、使用温度は低いが、加工性、溶接性が良い材質です。JISでは、GCN5の名称で登録されています。

主な用途

ヒーター（面状発熱体）、電子タバコ、シーラー

対応可能形状

線材、棒材等も寸法により対応可能です。お問い合わせください。

製造可能範囲（コイル、板）

板厚

0.040～2.0mm

幅

3.0～100mm

長さ

コイルもしくは L2000mm以下のシート

当社で製造するコイルやシート材の製造範囲です。
線や棒などの取り寄せ品は別途お問い合わせください。

規格

当社では特に指定のない場合、JIS規格に準拠して製造いたします。

JIS

GCN5R (C2532)

DIN

CuNi2, 2.0802

その他呼称/相当材料

ALLOY 30

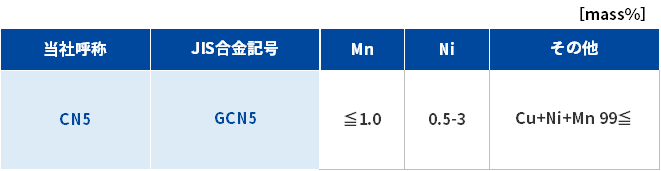

化学成分

物理的性質

密度

8.9 g/cm³

体積抵抗値

0.05 μΩ･m

磁性

なし

機械的性質

焼鈍仕上げの硬さは［120HV 以下］ですが、ご希望に応じて硬質材での提供も可能です。

※極薄箔の場合、焼鈍、2B仕上などの軟質材は、不具合（折れ、シワなど）発生の懸念があるため、対応できない場合がございます。
