C7701｜ばね用洋白

概要・特徴

C7701は、銅とニッケルと亜鉛からなる銀白色の光沢がある銅合金で、ばね用洋白とも呼ばれます。
圧延により高い強度を得られる材料ですが、強度上昇に伴い伸びが低下するため、高強度材においては曲げ加工などがない板ばねに使われることが多くなります。

対応可能形状

製造可能範囲（コイル、板）

板厚

要相談

幅

要相談

規格

化学成分

物理的性質

規格

規格は当材料と同等もしくは近似のものを掲載していますので、参考としてご利用ください。

JIS

C7701 (H3130)

UNS/CDA

C77000

化学成分

【主要成分】 CuNi18Zn27

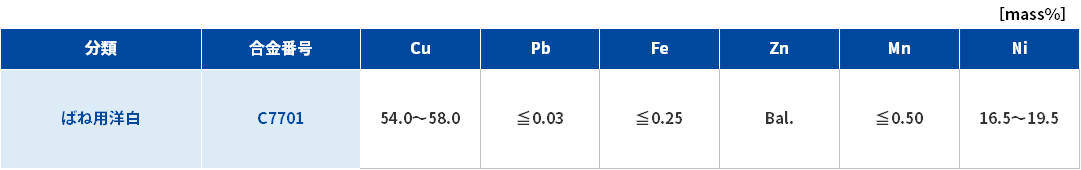

JIS規格の化学成分値は下表の通りです。

物理的性質

密度

8.70 g/cm³

比熱

377 J/(kg・K)

電気抵抗

30 μΩ・cm

弾性係数

127 GPa

熱膨張係数

16.7×10^-6/K

熱伝導率

29 W/(m・K) (25℃)

融点

1050 ℃

磁性

なし
