C5210｜ばね用りん青銅

非磁性

導電性

製品ラインナップ

試作・見積り依頼

概要・特徴

C5210は、ばね用りん青銅と呼ばれ、展延性、耐疲労性、耐食性が良い材料です。
圧延により高い強度を得られる材料ですが、強度上昇に伴い伸びが低下するため、高強度材においては曲げ加工などがない板ばねに使われることが多くなります。

対応可能形状

製造可能範囲（コイル、板）

板厚

要相談

幅

要相談

規格

化学成分

物理的性質

規格

規格は当材料と同等もしくは近似のものを掲載していますので、参考としてご利用ください。

JIS

C5210 (H3130)

UNS/CDA

C52100

化学成分

【主要成分】 CuSn8

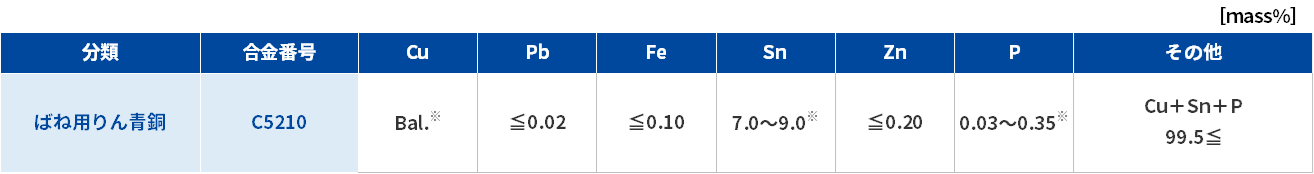

JIS規格の化学成分値は下表の通りです。

物理的性質

密度

8.86 g/cm³

比熱

377 J/(kg・K)

電気抵抗

9.6 μΩ・cm

弾性係数

98 GPa

熱膨張係数

17.8×10^-6/K

熱伝導率

79.5 W/(m・K)

融点

871-982 ℃

磁性

なし
